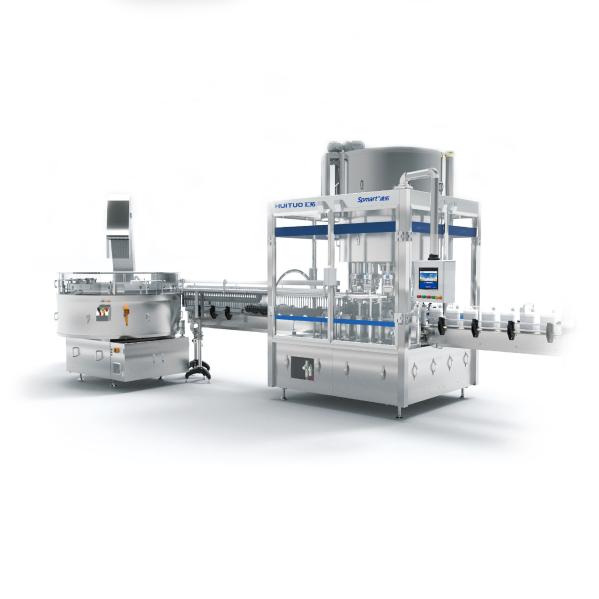

High Quality semi auto hot sell Professional pneumatic bottle
capping machine
PRODUCT DESCRIPTION
Major characteristics:
1 Claw structure, obtained many patent on technology, suitable for
caps with the function of liquid diversion and inserters
2 PLC controlled, integrated cap sorting, sending, grasping,
inserting
3 Automatic inlet cap and bottle position-setting and orientation,
adjustable torque control.
4 Gentle manipulation, no scratch and injury to caps and containers
5 Easy changeovers, one line capable of several products
6 Connected with filling machine and labeling machine easily
7 Module structure, manipulate on the touch screen, easy
maintenances
8 Suitable for containers made of PET/PP/PE/HDPE and so on
9 Production capacity can achieve 4000-8000b/h, higher speed can be
customized.
10 Applicable in detergent, shampoo, shower gel, hand cleaning gel,
laundry detergent and many other daily chemical products.
Major technical parameters:
Machine Dimension(L*W*H):2000mm×1600mm×2600mm
Weight:3800kg
Suitable caps:can be customized
Capping heads :8heads
Production capacity :<=4500b/h (can be customized)
Torque control :±0.3Nm
Qualified rate of capping:98%
Power suply :AC 380V,50Hz
Machine power :4kw
Air operated source:0.6Mpa clean and stable compressed air
PRODUCT PICTURES
COMPANY INFORMATION
PACKAGING & SHIPPING
CERTIFICATE
PAYMENT METHOD
FAQs
1. What types of packaging machines does Huituo offer?
We offer complete packaging systems that include one or more of the
following machines: bottle unscrambler, filling machine, capping
machine, cap unscrambler, bottle rinsers and washers, sleeve
labelers, inkjet printers for labelers, conveyors, turntables, and
monoblock.
2. What are the basic types of capping machines?
We have three series of capping machine:
1. SPU
Permanent magnet clutch
Suitable for the bottles with similar heights
Can be customized based on requirements
Max. Speed: 100bpm
2. SPI:
Permanent magnet clutch
Suitable for more bottles and caps
Can be customized based on requirements
Max. Speed: 200bpm
3. SPM:
Servo control
Suitable for more bottles and caps
Higher torque accuracy
Easier operation
Can be customized based on requirements
Max. Speed: 200bpm
3. What's the difference between semi-automatic and automatic
capping machine?
Semi-automatic capping machines require one or more operators to
place caps onto the cap-sending channels. The automatic capping
machine will be equipped with cap elevator and unscrambler,
achieving the highest production rates. It is suitable for round
cap and pump.
4. What are the basic types of filling machines?
Usually we have three types of filling machines
1. self-flow filling machine
2. Piston filling machine (Option 1: one servo motor to control all
filling nozzles; Option 2: each filling head is controlled by each
motor)
3. Flowmeter filling machine (Option 1: electromagnetic flowmeter;
Option 2: mass flow meter)
4. Pneumatic filling machine
Now, we have the forth filling machine for the hand sanitizer with
70%-80% alcohol, as it is much safer than the above three.
5. Should I choose linear filling machine or rotary filling
machine?
Usually, if the speed is over 6,000bph(based on 500ml), we will
suggest customer choose the rotary filling machine. The linear one
is more suitable for lower speed.
6. Do installation and training included in the machinery cost?
Training is included with most Huituo machinery but installation
and commissioning at site requires an additional fee.
7. What warranties does Huituo offer?
One year on non-wear parts and labor. Huituo warranties can also be
extended, ask a salesperson for information.
8. Can I rent equipment from Huituo?
Yes. Ask a salesperson for more information.
9. How long will the machine be delivered?
It depends on the degree of customization. The higher degree, the
longer delivery time.
