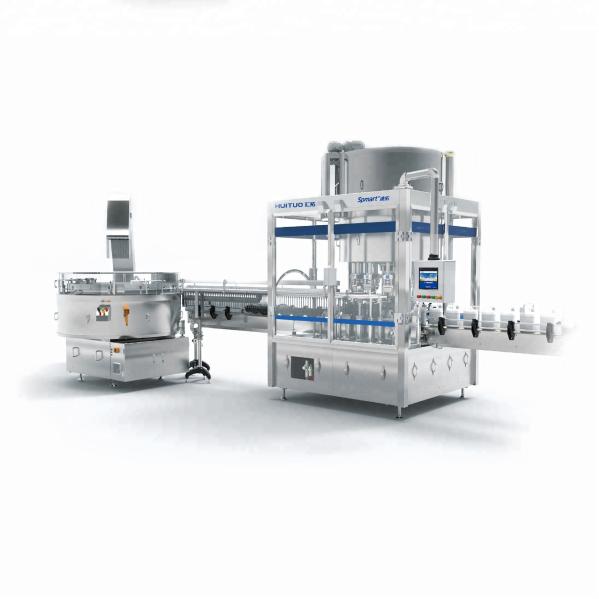

Automatic filling capping and labeling machine for hand sanitizing gel, liquid soap and sanitizer

PRODUCT DESCRIPTION

Major Characteristics:
This non-metal filling machine specially designed for strong acid/alkali product.
1. PLC controlled ,friendly touch screen control. Covered by acrylic to eliminate odor and used the exhaust fan
2. The function of vacuum suck back can easily avoid leaking, pollution and lead the liquid back to the vacuumtank.
3. The filling nozzles can diver to the bottom of the bottle very stable, the depth and speed can be adjusted by the touch screen.
4. Special structure to protect the filling nozzles and bottles from damage and deformation.
5. Equipped with the mechanical stem guide structure ensure the stability for up and down, and translation.
6. All parts contact acid cleaner are made of plastic, anti-corrosion. The filling nozzles are made of Titanium alloy. Used the best quality of stainless steel for parts non direct contact with liquid.
7. Famous brand electrical and pneumatic components used to guarantee machines quality and long life service time.
8. Not only whole filling heads can be adjusted, but each filling head can be fine-adjusted respectively.
9. Bottle inlet counting, quantities filling, bottle outlet counting, and serious motions can be done automatically.
10. Simple structure, easy operation, Low noise, reliable running, accurate filling.
11. Control unit is placed away from the machine

Major Technical Parameters

PRODUCT PICTURES

COMPANY INFORMATION

PACKAGING & SHIPPING

CERTIFICATE

PAYMENT METHOD

FAQs

1. What types of packaging machines does Huituo offer?

We offer complete packaging systems that include one or more of the following machines: bottle unscrambler, filling machine, capping machine, cap unscrambler, bottle rinsers and washers, sleeve labelers, inkjet printers for labelers, conveyors, turntables, and monoblock.

2. What are the basic types of capping machines?

We have three series of capping machine:

1. SPU

Permanent magnet clutch

Suitable for the bottles with similar heights

Can be customized based on requirements

Max. Speed: 100bpm

2. SPI:

Permanent magnet clutch

Suitable for more bottles and caps

Can be customized based on requirements

Max. Speed: 200bpm

3. SPM:

Servo control

Suitable for more bottles and caps

Higher torque accuracy

Easier operation

Can be customized based on requirements

Max. Speed: 200bpm

3. What's the difference between semi-automatic and automatic capping machine?

Semi-automatic capping machines require one or more operators to place caps onto the cap-sending channels. The automatic capping machine will be equipped with cap elevator and unscrambler, achieving the highest production rates. It is suitable for round cap and pump.

4. What are the basic types of filling machines?

Usually we have three types of filling machines

1. self-flow filling machine

2. Piston filling machine (Option 1: one servo motor to control all filling nozzles; Option 2: each filling head is controlled by each motor)

3. Flowmeter filling machine (Option 1: electromagnetic flowmeter; Option 2: mass flow meter)

4. Pneumatic filling machine

Now, we have the forth filling machine for the hand sanitizer with 70%-80% alcohol, as it is much safer than the above three.

5. Should I choose linear filling machine or rotary filling machine?

Usually, if the speed is over 6,000bph(based on 500ml), we will suggest customer choose the rotary filling machine. The linear one is more suitable for lower speed.

6. Do installation and training included in the machinery cost?

Training is included with most Huituo machinery but installation and commissioning at site requires an additional fee.

7. What warranties does Huituo offer?

One year on non-wear parts and labor. Huituo warranties can also be extended, ask a salesperson for information.

8. Can I rent equipment from Huituo?

Yes. Ask a salesperson for more information.

9. How long will the machine be delivered?

It depends on the degree of customization. The higher degree, the longer delivery time.
