Full and semi automatic spray trigger capping machine from china

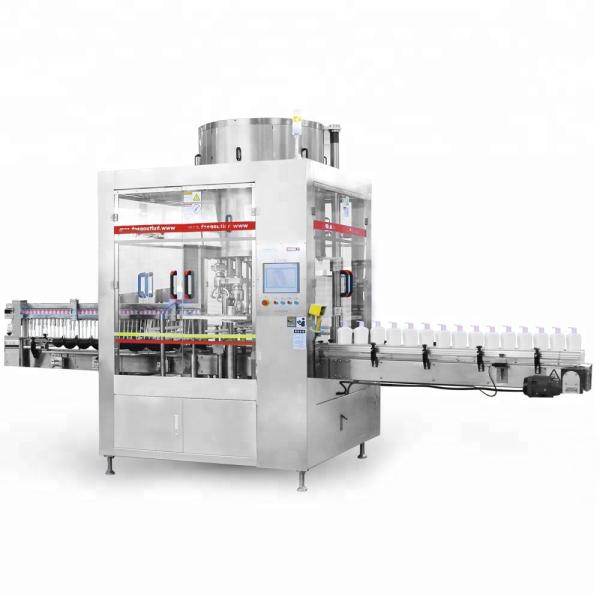

SP-T-4 Rotary Automatic Trigger Capping Machine
Major Characteristics:
(1) Four claws structure, obtained many patents on technology, suitable for spray caps, trigger caps,caps with tube
(2) PLC controlled ,integrated cap sending ,grasping ,capping ( can
affiliate with automatic cap sorting machine)
(3) Automatic inlet cap and bottle position-setting and
orientation, adjustable torque control.
(4) Gentle operation, no scratch and injury to caps and containers
(5) Easy changeovers, one line capable of several products
(6) Connected with filling machine and labeling machine easily
(7) Module structure, manipulate on the touch screen, easy
maintenances
(8) Suitable for containers made of PET/PP/PE/HDPE and so on
(9) Production capacity can achieve 4000-8000b/h, higher speed can
be customized.
(10) Applicable in liquid detergent, window cleaning detergent,
kitchen cleaning detergent,and many other daily chemical products.
Major Technical Parameters:
(1) Machine Dimension(L*W*H): 2000mm*1600mm*2600mm
(2) Suitable caps and containers: Can be customized
(3) Capping Heads: according to required production capacity
(4) Production capacity: 1800b/h,3000b/h,5000b/h,7000b/h,8 heads can
reach 5000b/h
(5) Power supply: AC 380V,50Hz;AC 220V,50Hz (Customized)
(6) Machine power : 4 kw
(7) Air operated source: 0.6Mpa clean and stable compressed air
(8) weight: About 4500kg
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will
be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and
debugging machines. Engineer's round-trip tickets,
accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD50.00/day/person.
(4) We can also supply training process for your engineers who come
to china, so you can fit and debug machines by yourself.
About Us:
-- Focusing on Development, Packaging Industry Leader
-- Keeping on Recruiting Talents and Innovation
-- Advanced equipment, Guaranteed quality
Changzhou Huituo Technology Co., Ltd. is a joint stock
technological enterprise, focusing on R&D and manufacturing
high quality filling, capping and many other intelligent packaging
equipments. Our full a
utomatical trigger, pump cap capping machine and pour spout
inserter (laundry) are China initial, fill the
blank market, obtain complete intellectual property. Our linear
filling machine and rotary filling machine
also have occupied the leading positon in China. LiBy Group,
Johnson and many other domestic daily
chemical industries have adopted our filling and capping system
which take the place of imported
equipments to satisfy their increasing demanding for production
automation.
FAQs
1. What types of packaging machines does Huituo offer?
We offer complete packaging systems that include one or more of the
following machines: bottle unscrambler, filling machine, capping
machine, cap unscrambler, bottle rinsers and washers, sleeve
labelers, inkjet printers for labelers, conveyors, turntables, and
monoblock.
2. What are the basic types of capping machines?
We have three series of capping machine:
1. SPU
Permanent magnet clutch
Suitable for the bottles with similar heights
Can be customized based on requirements
Max. Speed: 100bpm
2. SPI:
Permanent magnet clutch
Suitable for more bottles and caps
Can be customized based on requirements
Max. Speed: 200bpm
3. SPM:
Servo control
Suitable for more bottles and caps
Higher torque accuracy
Easier operation
Can be customized based on requirements
Max. Speed: 200bpm
3. What's the difference between semi-automatic and automatic
capping machine?
Semi-automatic capping machines require one or more operators to
place caps onto the cap-sending channels. The automatic capping
machine will be equipped with cap elevator and unscrambler,
achieving the highest production rates. It is suitable for round
cap and pump.
4. What are the basic types of filling machines?
Usually we have three types of filling machines
1. self-flow filling machine
2. Piston filling machine (Option 1: one servo motor to control all
filling nozzles; Option 2: each filling head is controlled by each
motor)
3. Flowmeter filling machine (Option 1: electromagnetic flowmeter;
Option 2: mass flow meter)
4. Pneumatic filling machine
Now, we have the forth filling machine for the hand sanitizer with
70%-80% alcohol, as it is much safer than the above three.
5. Should I choose linear filling machine or rotary filling
machine?
Usually, if the speed is over 6,000bph(based on 500ml), we will
suggest customer choose the rotary filling machine. The linear one
is more suitable for lower speed.
6. Do installation and training included in the machinery cost?
Training is included with most Huituo machinery but installation
and commissioning at site requires an additional fee.
7. What warranties does Huituo offer?
One year on non-wear parts and labor. Huituo warranties can also be
extended, ask a salesperson for information.
8. Can I rent equipment from Huituo?
Yes. Ask a salesperson for more information.
9. How long will the machine be delivered?
It depends on the degree of customization. The higher degree, the
longer delivery time.
