Huituo versatile rotary automatic servo capping machine for lotion
pump, disc-top and Yorker cap
Main structure and principle
SPI-12 is composed of several main parts, including bottle feeder +
automatic cap elevator and sorter + inlet and outlet bottle
template + capping mechanism + rejection mechanism + electrical
control etc.
Working principle: Each capping head is driven by an independent
rotary servo motor. The electronic cam completes the capping head
lifting, cap grabbing and servo capping action. During the capping
process, the speed and torque of each claw head are determined by
the program according to the actual needs. The capping servo motor
is automatically and precisely controlled by the program, with
closed-loop control, and torque error self-correcting caused by the
inertia.
Huituo servo capping machine can follow the previous filling
equipment for synchronous linkage. It stops, and the capping
machine will stop. So does the acceleration.
1 Cap-sending channel
The pump cap adopts the servo motor transmission form. The servo
motor has the specific advantage of performing periodic start and
stop and periodic positive reversal. The cap channel adopts the
servo motor to drive the belt and the chain, which can perform
periodic start-stop or forward-reverse movement, not only reducing
noise and eliminating cap block.
2 Bottle-in & out template
It is made of polymer polyethylene, and the surface of the bottle
plate is fully fitted to the bottle type and the surface is smooth.
It can not only stabilize the positioning, prevent the bottle body
from being scratched; and has the function of rapid change of
production(8min) and module structure.
3 Cap-grasping
The cap is fed by the servo, and the claw is taken according to the
rule that the cap is placed with bottle, the cap isn’t placed
without bottle, and the angle is rotated at the same time
(according to the starting angle of the cap and the starting
position of the bottle, to ensure that the pump nozzle will not be
injured).
4 Capping function description
- Closed loop control by the servo motor and program throughout the
capping process;
- automatically adjust the capping force until the set torque is
reached;
- Due to the precise and flexible control of the motion drive
module and program, the influence of the inertia of the capping
head and the deviation of the parts can be eliminated;
- Torque switching between different products can be achieved
simply by changing the set value of the program;
Main machine lift adjustment
The machine is electrically lifted and adjusted. When the
specification is changed, it only needs to be operated in the touch
screen or the lift handle can realize the height adjustment, and
the lift and the limit switch are limited to the specification
height;

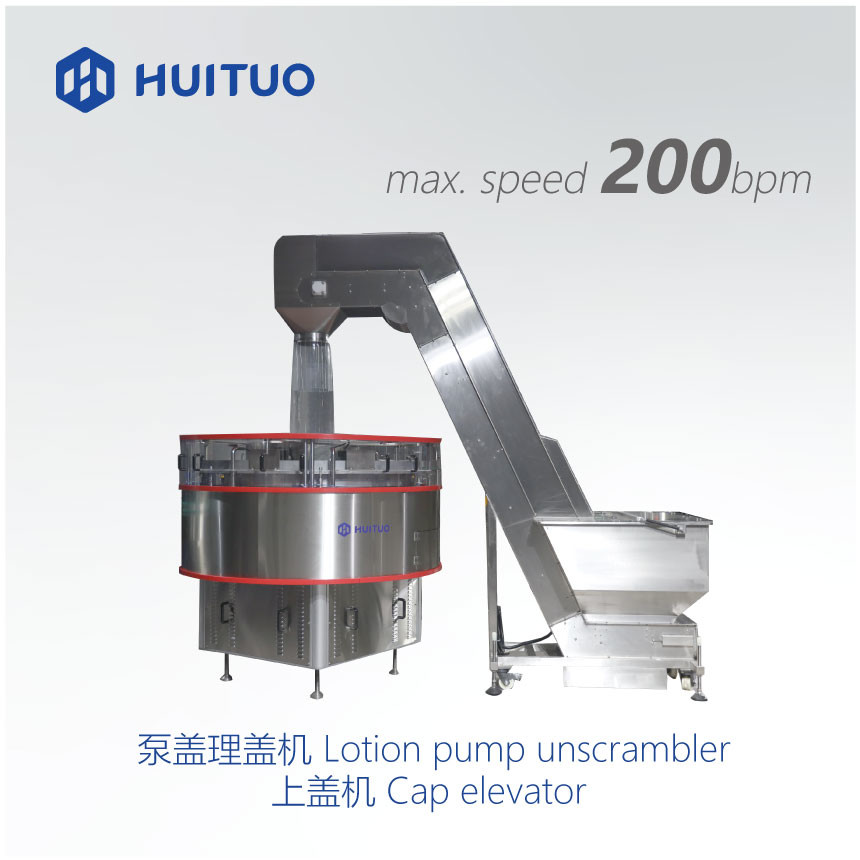

Lotion pump unscrambler
It is to arrange the disorderly pump cap regularly by the double
centrifugal differential principle. The cap is outputted from the
cover channel in an orderly manner, and the capping machine is
grasped by the distribution plate.
-The speed of the sorter is automatically adjusted according to the
elevator.
-The sorter is automatically controlled by the capping machine
interface, without manual adjustment.
-The parameters can be stored.
-Quick changeover.
Cap elevator
The intelligent elevator is connected with the sorter, and
automatically controls the cap-sending speed, which is matched with
the whole line control.
