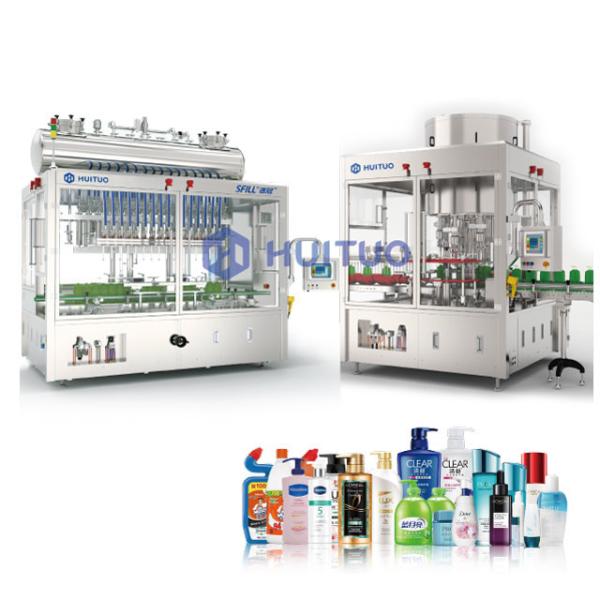

Multifunctional capping machine capper for lotion pump and spray trigger dispenser with sorter and unscrambler

8-head capping machine (it can be customized based on specific requirements)

Speed: 35+35bpm

Bottle volume: 100ml-1,500ml

Liquid: hand wash, sanitizer, disinfectants

Bottles suitable: cylinder, flat and irregular shapes

Caps suitable: lotion pump, spray trigger

Highlight: able to deal with pump and trigger in one machine.

Servo cap-sending channel

SPU-8C adopts servo motor for cap-sending chain. The servo motor has the advantages of periodic start and stop, periodic positive and negative rotation, not only reducing noise and avoid cap-stuck.

Bottle-in/out templates

The templates are made of polymer polyethylene(PE), fully fitted to the bottle shape with smooth surface. It can not only stabilize the positioning, prevent the bottle from being scratched; and featurs fast changeover, with module structure.

Changeover time required: 15min for 2 workers

Unqualified products rejection

After capping, there is a dual-conveyor with sensors; The qualified products are normally transported, and the unqualified ones (no cap, no inner tube, tilted cap-higher than normal 2mm) will be automatically split to another conveyor by swing cylinder.

1. Siemens control system

2. Storage tank with liquid level detection

3. Contact parts are made of 316L, like the filling nozzle, tank

4. Piston , its size based on the volume

5. Conveying system.

Highlights

1. Suitable for liquids of different viscosity, from 0-100,000cps.

Capable of filling low viscosity liquids such as glass cleaner, toilet cleaner, also high viscosity, such as lotion and face cream. In addition to personal care industry, it also can be applied to food industry, thin chilli sauce like products with particulate (chilli seeds) up to 6mm, thick ketchup and mayonnaise like products and chutneys with up to 10mm.

2. High filling accuracy

Filling piston-volume metering method is adopted. The servo motor controls the filling head and adopts multi-stage dived filling, which is suitable for products that are easy to foam during filling.

3. Too-free changeover

The filling parameters of each filling nozzle can be set or modified on the touch screen, or directly call the stored parameters of different products for changeover, and the PLC has the function of batch modification and storage. The changeover parts include guardrail, filling nozzle spacing adjustment, bottle feeding sensor adjustment, and stopper position adjustment etc.

4. Electric cabinet design based on IEC standard

The system has rich interfaces. In addition to the commonly used serial communication interfaces, there are also reserved industrial Ethernet interfaces and memory card interfaces. It can easily access the customer's management network and record and save production data.

5. Stylish design

The overall frame of SFL filling machine is made of SUS304, with high-transparency plexiglass. The parts in contact with materials such as the storage tank and filling nozzle are made of stainless steel 316L.
