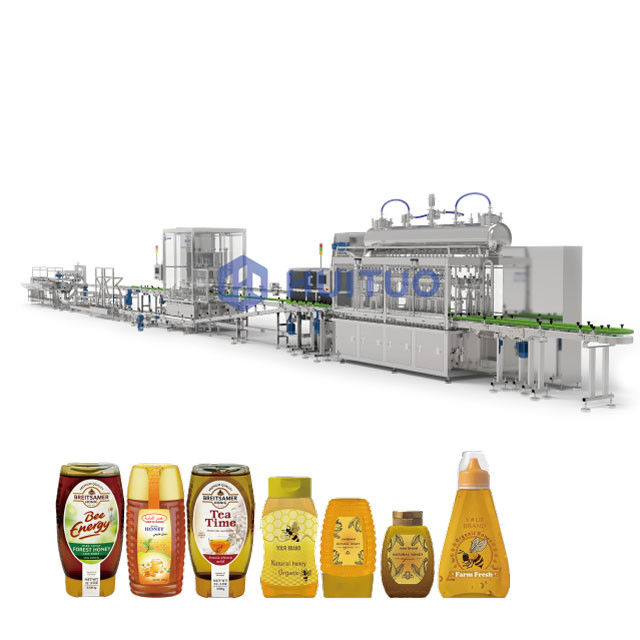

Automatic high-speed capping machine equipment manufacturer for
plastic honey bottles
Working process
Huituo automatic capping machine feeds bottle by screw rod, and the
bottle is transferred to the capping part by the bottle-in star
wheel which is designed based on the bottle shape, and the cap is
fed by cap-feeding channel and the cap is sorted out to the cap
feeding channel in an orderly manner with cap sorter unscrambler,
and then transports them to the capping station. The tightened
bottles will be sent out by the bottle-out star-wheel. For the
unqualified products, it will be rejected to another conveyor.
No | Item | Data |
1 | Dimension | 2000mm*1600mm*2600mm |
2 | Stand-alone pass rate | 99% |
3 | Cap-pressing | Vacuum suction |
4 | Speed | Customized based on requirement, 20-300bpm |
5 | Voltage
| 220VAC~380VAC, 50Hz-60Hz |
6 | Air source | 0.4-0.6Mpa clean and stable air source |
7 | Noise | ≦80 decibels |
8 | Machine material | Frame: carbon steel outsourcing stainless steel frame; Capping head contacting with cap: polyurethane (PU) ; Screen door: stainless steel edging, plexiglass; Electrical box: stainless steel, designed in IEC standard
Connection and fixing mechanical parts: carbon steel, stainless
steel, etc.;
Seal: rubber |
Key components
Screw rod(bottle-feeding)
The screw rod separates the bottle and is designed with bottle-in
detection device, no bottle no cap-sending and the machine will
automatically stop and alarm, if there is bottle stuck.
Middle capping part(star wheels)
All star wheel changes are replaced as a whole. The replacement
parts include the bottle-in star wheel, the bottle-out star wheel,
middle star wheel, the inlet and outlet guide plates, and the outer
ring.
Cap-pressing head
Use special tools to loosen the locking bolts to replace the
capping head, pay attention to the front and back directions of the
head when replacing.
Rejection of unqualified products
After cap-pressing, there is a double conveyor structure with an
intelligent detection device. The qualified bottles are normally
transported, and the unqualified (no cap, higher cap) bottles are
automatically shunted to another conveyor belt by using the
swinging cylinder. When there is bottle stuck, the machine
automatically stops and starts again after the problem is solved.
