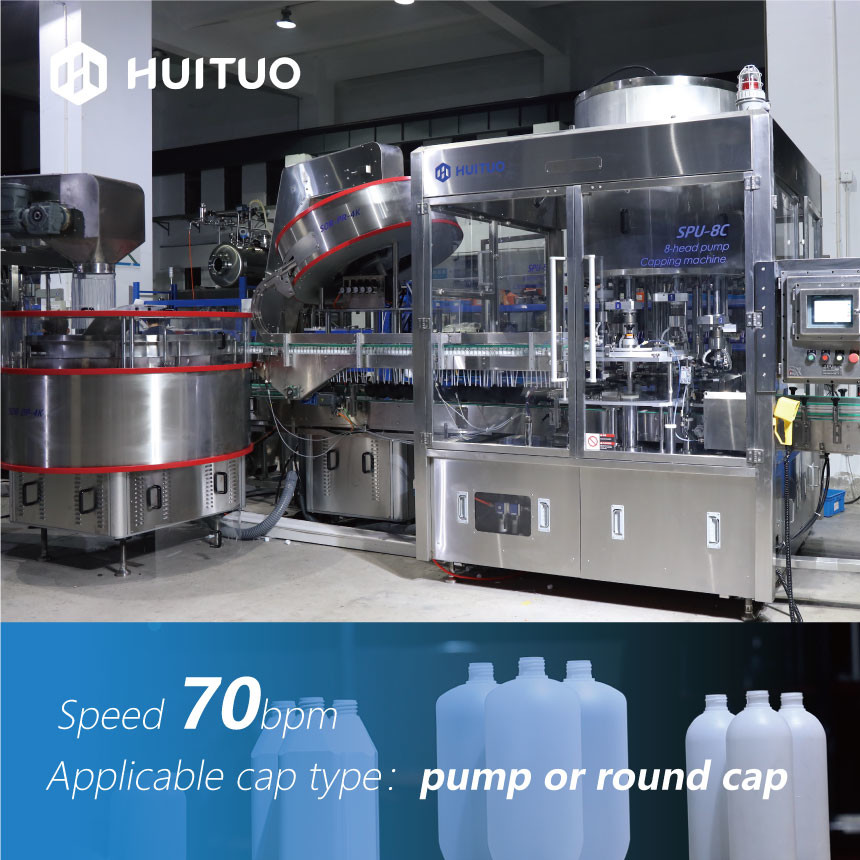

Huituo multifunctional 8-head rotary capping machine, suitable for
lotion pump, flip top and pull-push
SPU-8C capping machine is a fully automatic capping machine after
technological transformation. The machine sends the bottles to the
screw rod by the conveyor belt, and the bottle is transferred to
the capping machine by the bottle-in star wheel which is designed
based on the bottle shape, and the cap is sent by the cap elevator,
which is sorted out to the cap feeding channel in an orderly
manner, and then transports them to the capping station. The
tightened bottles will be sent out by the bottle-out star-wheel.
This is the entire process of capping.
The equipment is advanced in technology, with protection alarm
devices such as bottle blocking, bottle shortage, lack of cap,
overload, etc., reliable performance, scientific process, food
hygiene conditions which meet the national hygiene standards, high
degree of production automation and easy operation. It is ideal and
preferred capping equipment for manufacturer, suitable for
varieties of packing lines.
Main technical parameters
| 1 | Applicable bottle | 5ml-5,000ml |
| 2 | Cap specifications | Customized |
| 3 | Number of caps | 8 |
| 4 | Speed | ≤4,200bph can be customized |
| 5 | Power supply | AC 380V/220V 50/60 Hz |
| 6 | Power | ≤10 kW(Cap elevator and unscrambler included) |
| 7 | Weight | About 4,000 kg |
| 8 | Dimensions | 1920 × 1790 × 2700 (L × W × H) mm |
Bottle-feeding by screw
The screw drive follows the main drive, the screw angle can be set
via touch screen to make it match with the star wheel. There is a
sensor at the bottle-in screw, no bottle, no capping and alarm when
bottle-stuck.
Servo cap-feeding
SPU-8C adopts servo motor for cap-feeding chain. The servo motor
has the advantages of periodic start and stop, periodic positive
and negative rotation, not only reducing noise and avoid cap-stuck.
Cap-dividing
The cap divider is customized by the cap shape and different
diameters would require changeover, but only the parts contacting
cap needs to be changed.
Templates
Made of PP, designed by bottle shape, with smooth surface.
It can not only stabilize the positioning, prevent the bottle from
being scratched; and allows quick changeover.
Bottle-fixing
It’s easy to slip for the cylinder bottle when capping, and the
bottle is soft and easy to scratch. Therefore, the belt or bottle
holder mechanism is adopted. The bottle holder is made of silica
gel to prevent the bottle form from slipping and scratching.
Rejecting
Dual-conveyor with camera after capping
The qualified products are normally transported, and the
unqualified ones (no cap, no inner tube, tilted cap-higher than
normal 2mm) will be automatically split to another conveyor by
swing cylinder.
