Automatic plastic bottle container servo spray pump dispenser
capping machine
Product Overview
Servo capping machine
Able to deal with press-on or screw-on caps and spray, dispenser
pumps and trigger and suitable for different types of bottles,
whether cylinder, flat or irregular.
Handle press-on or screw-on caps and pumps, whether of the spray,
dispenser or trigger style.
1. Working principle: continuous rotary;
2. Capacity: 200bpm for pumps and 300bpm for screw-on caps;
3. Torque control by servo, modify via touch screen;
4. Changeover parts in modular design, within 15min for changeover;
5. Capping efficiency 98%, and pass rate 99.9%.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Dimension | 2000mm*1600mm*2600mm |
2 | Stand-alone pass rate | 99% |
3 | Torque control | 0-3N*M Two options: Permanent magnet clutch or servo motor |
4 | Speed | Customized based on requirement, 20-300bpm |
5 | Voltage | 220VAC~380VAC, 50Hz-60Hz |
6 | Air source | 0.4-0.6Mpa clean and stable air source |
7 | Noise | ≦80 decibels |
8 | Machine material | Frame: carbon steel outsourcing stainless steel frame; Capping head contacting with cap: polyurethane (PU) ; Screen door: stainless steel edging, plexiglass; Electrical box: stainless steel, designed in IEC standard
Connection and fixing mechanical parts: carbon steel, stainless
steel, etc.;
Seal: rubber |
SALES AND SERVICE NETWORK
Servo cam capping machine features

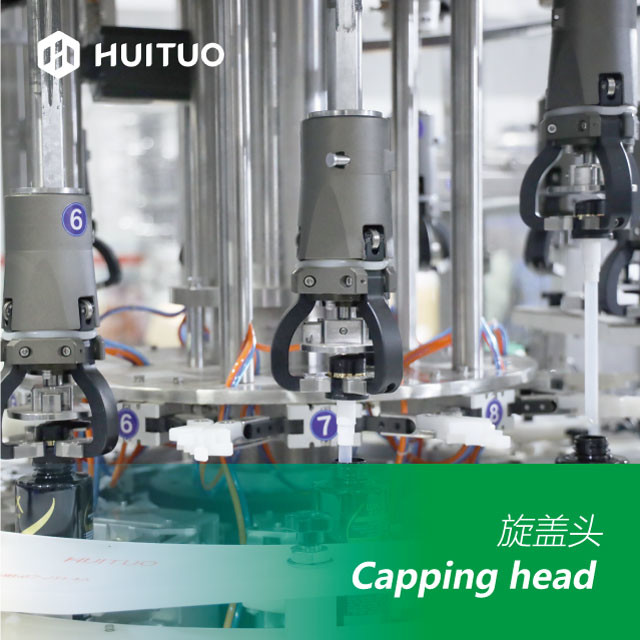

1. Not only each capping head with one servo motor to control
torque, but also added servo motor on each head for cam change(
electronic cam)
2. A dip-tube centring system for guiding the dip-tube into the
bottle neck is included in the servo cam version.
3. The electronic cam ensures rapid pump and bottle format change
over and the utmost flexibility for handling different formats of
pumps and with dip-tubes having different lengths, without the need
of replacing important mechanical components of the machine.
Compared with mechanical cams, electronic cams have the following advantages:
-The system can store multiple cam curves for different products.
When changing production, choose it via touch screen;
- The cam curve can be modified, deleted and added in real time.
- With electronic cam, the capper has less noise and more flexible
action;
- The position of the lifting shaft can be monitored in real time
in the system, and real-time data can be mastered.
