    Automatic Rotary Bottle Filling Capping Machine For Personal Care Flip Top

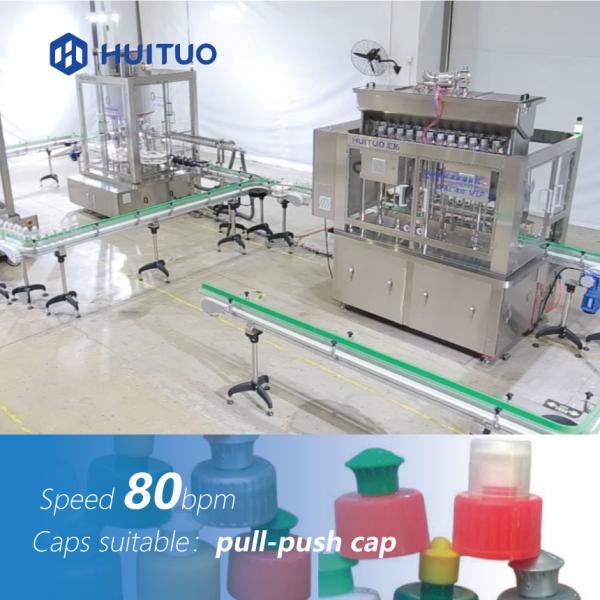

    Automatic rotary bottle filling capping machine for personal care flip top, pull-push cap closure


    Huituo filling and capping machine features stable, automatic and easy operation, suitable for personal care, cosmetics, food and medical industries. One machine can deal with different types of closures.

    The filling machine is mainly composed of control system, conveying device, sensor detection, feeding device, storage tank, liquid level control device, filling device, bottle-clamping device and bottle stopper etc.

    The capping machine is composed of several main parts, including bottle/cap feeding + automatic cap elevator and unscrambler+ inlet and outlet bottle template + capping mechanism + rejection mechanism + electrical control etc.

    Automatic Rotary Bottle Filling Capping Machine For Personal Care Flip Top


    Main parameters

    No.ItemDescription
    01Dimension2000mm*1600mm*2600mm
    02Stand-alone pass rate99%
    03

    Capping machine

    Torque control

    0-3N*M

    Two options: Permanent magnet clutch or servo motor

    04

    Filling machine

    Filling method

    Volumetric piston;

    Flow meter ( KROHNE/E+H);

    Self-flow gravity

    05Speed

    Customized based on requirement

    20-300bpm

    06Voltage220VAC~380VAC, 50Hz-60Hz
    07Air source0.6Mpa clean and stable air source
    08Noise≦80 decibels
    09WeightAbout 3,000kg
    10

    Capping machine

    Material

    Frame: carbon steel outsourcing stainless steel frame;

    Capping head contacting with cap: polyurethane (PU) ;

    Screen door: stainless steel edging, plexiglass; Electrical box: stainless steel;

    Connection and fixing mechanical parts: carbon steel, stainless steel, etc.;

    Seal: rubber


    Automatic Rotary Bottle Filling Capping Machine For Personal Care Flip Top
