Automatic Liquid Filling and Capping Machine for medical
disinfectant fluid,medical capsule,tablet and Liquid reagent
Features:

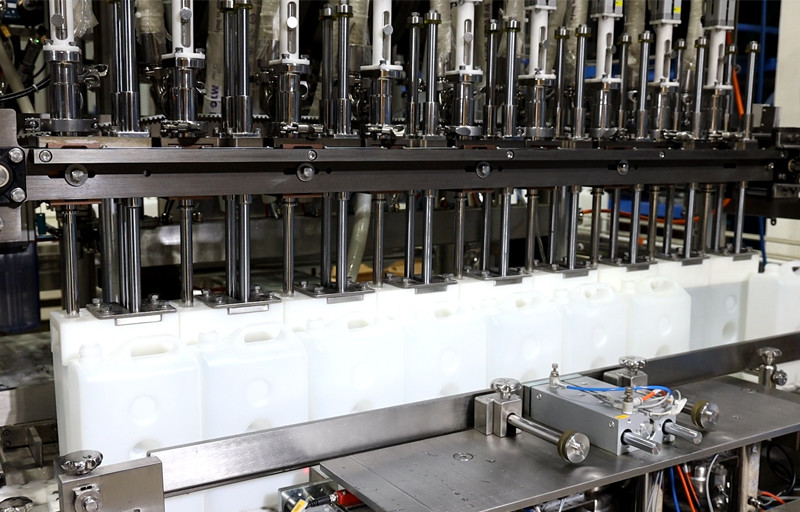

1.Huituo automatic piston filling machine is mainly composed of
control system, conveying device, sensor detection, feeding device,
storage tank, liquid level sensor, filling device, bottle-clamping
device and bottle stopper etc.
2. The electrical control part is composed of PLC and frequency
converter, which features high integration, strong control ability
and reliable operation. The user friendly makes the operation of
the filling machine more reliable and convenient. Photoelectric
sensors use advanced sensing components to make the machine's
electromechanical integration a perfect performance.
3. Huituo filling machine can be widely used for filling a variety
of bottles and filling materials, such as the body lotion, shampoo,
hand sanitizer and glass/toilet cleaner etc. Simple adjustment and
replacement of changeover parts not only saves costs, but also
greatly improves the efficiency and productivity of the entire
line.
Servo motor(Optional):
Huituo filling machine can be designed based on your requirements
and budget. The full servo filling machine with higher filling
accuracy and easier adjustment is well received by many users.
Main technical parameters (for reference)
| No. | Item | Description |
| 1 | Applicable bottle | Based on requirement |
| 2 | Filling accuracy | ±3‰ |
| 3 | Dimensions | Based on actual design |
| 4 | Weight | 3,000kg |
| 5 | Number of filling heads | Customized, from 4-head to 24-head |
| 6 | Production capacity | Customized, from 40bpm to 150bpm |
| 7 | Air source | 0.5Mpa-0.6Mpa clean and stable air source |
| 8 | Power | 380V;50Hz(based on customer requirement) |
| 9 | Running noise | ﹤80dB(A) |
| 10 | Machine material | Frame: carbon steel, stainless steel frame; Contact material, filling area, liquid storage tank: 316L stainless
steel; Filling head: 316L stainless steel; Material pipe: sanitary grade steel hose; Electrical box: SUS304 stainless steel Connected and fixed mechanical parts: SUS304 stainless steel;
control valve: 316L stainless steel; Screen door: stainless steel edging, plexiglass |

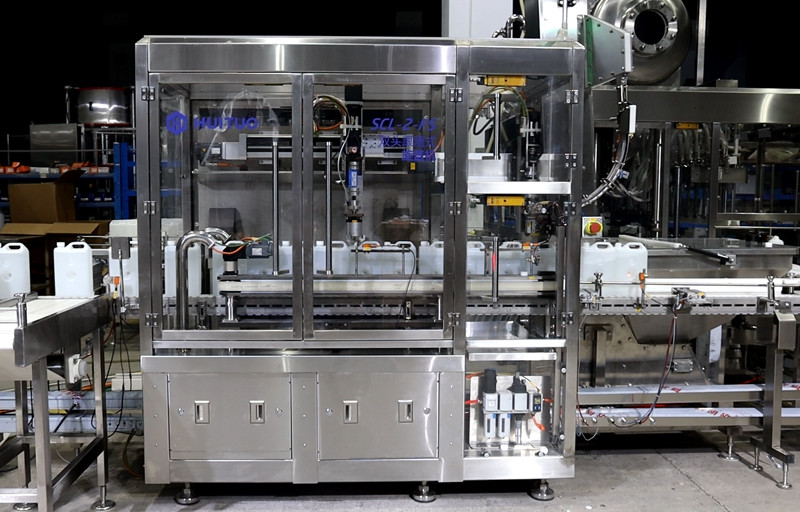

Automatic capping machine of pharmaceutical reagents is the best
solution for u.
Cover type: round cover.
Capacity:9600bp/h.

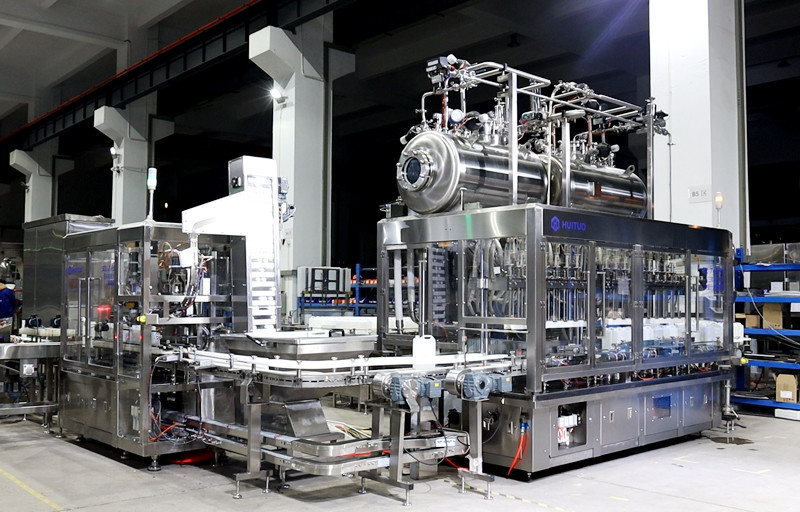

This solution includes:
1 16-head round filling machine
2 2-head capping machine
Of course, we can also customize solutions according to your
capacity requirements.
