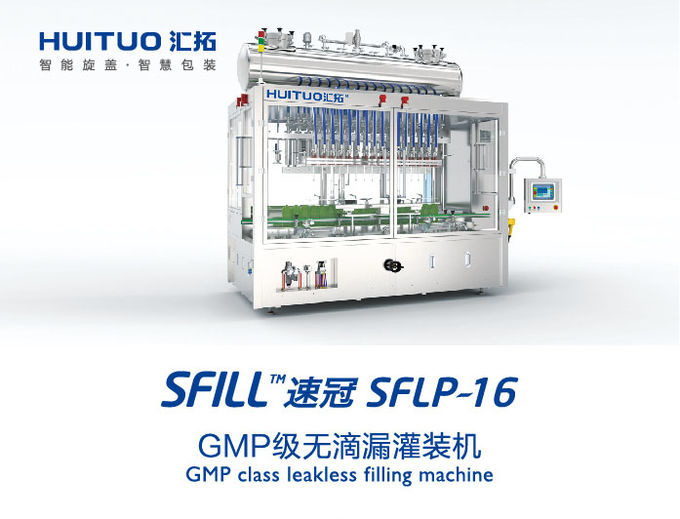

    Automatic Linear Liquid Piston Filling Machine for Plastic Pet Bottle Glass Jar

    Ask Lasest Price
    Brand Name : HUITUO
    Model Number : SFL
    Certification : CE,ISO
    Payment Terms : TT/LC
    Supply Ability : 30set/month
    Delivery Time : 15-60 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Automatic Linear Liquid Piston Filling Machine for Plastic Pet Bottle Glass Jar

    Automatic Linear Plastic Pet Bottle And Glass Jar Liquid Piston Filling Machine


    Features

    1. This machine is mainly composed of control system, conveying device, photoelectric detection, feeding device, storage tank, liquid level control device, filling device, bottle-clamping device and bottle stopper etc.

    2. The electrical control part is composed of PLC and frequency converter, which features high integration, strong control ability and reliable operation. The touch screen makes the operation of the machine more reliable and convenient, and the human-machine interface is more friendly. Photoelectric sensors use advanced sensing components to make the machine's electromechanical integration a perfect performance.

    3. It can be widely used for filling a variety of bottle types. Simple adjustment and replacement of changeover parts are required, when changing production, which not only saves costs, but also greatly improves the efficiency and productivity of the entire line.


    Storage tank

    Automatic Linear Liquid Piston Filling Machine for Plastic Pet Bottle Glass Jar

    Automatic Linear Liquid Piston Filling Machine for Plastic Pet Bottle Glass Jar

    It is composed of the main tank body, the feeding pipe, the cleaning pipe, cleaning ball, the liquid level detection sensor, and the mechanical safety valve etc. The liquid level sensor uses a guided wave radar and has a continuous liquid level detection function. The replenishment of the tank is performed according to the feedback signal of the liquid level detection. When the liquid level is at the set low liquid level, the butterfly valve opens and starts to replenish. When the high liquid level is set, the butterfly valve closes and stops feeding.


    Filling head

    Automatic Linear Liquid Piston Filling Machine for Plastic Pet Bottle Glass Jar

    Specially designed filling nozzle with high precision and long service life.


    Feeding hose

    Automatic Linear Liquid Piston Filling Machine for Plastic Pet Bottle Glass Jar

    It adopts branded conveying pipe, which conforms to food grade FDA, smooth EPDM rubber, abrasion resistance, ozone resistance and aging resistance, and is sterilized at 110 degrees for 30 minutes.


    Three-way valve

    Pneumatic three-way valve ensures timely and smooth flow path change.


    Servo motor dive-filling mode

    The servo motor drives the filling head to run in a submerged filling mode. The operation is stable, low noise, continuously adjustable, and equipped with limit switches. The submersible position can be switched according to different products.


    Bottleneck fixer

    The bottle stopper uses a sliding stopper, which can be continuously adjusted for different bottle types. The slider uses a card slot structure, which is not easy to fall off on the slide conveyor. All fastening handles use quick-install handles, with no tools when adjusting.


    Main electrical components

    No.PartsBrand
    1PLCSiemens
    2Touch screenSiemens
    3Intermediate relayPanasonic
    4BreakerSchneider
    5Frequency converterSchneider
    6ButtonSchneider
    7Alarm lightSchneider
    8Safety door switchSICK
    9PhotoelectricSICK
    10Proximity switchSICK
    11Air pressure switchSMC
