Import china products semi automatic bottle liquid cosmetic filling
machine price
FLP linear piston filler Series
AUTOMATIC LINEAR PISTON FILLING MACHINE
FOR ANTI-LEAKING, ANTI-FOAM LIQUID)
Major Technical Parameters: |
| Machine Dimension(L*W*H): 2m*1.1m*2.2m | Air operated source: 0.6Mpa clean and stable compressed air |
Speciation of container: height: 50mm-350mm diameter:30-100mm(Abnormal bottles also can use) | Filling error:(50ml-100ml)plus or minus 1% (100-500ml)plus or minus 0.5% (500-1000ml)plus or minus 0.3% |
| Power suply: AC 380V, 50Hz | Number of filling heads: 6/8/10/12/16(can be customized) |
| Machine power:1.5Kw-4kw | production capacity: 2500-6000 bottles/hour |
Major Characteristics: |
(1) 6-16 heads linear pistion filler, suitable for various kinds of
plastic and glass containers (2) PLC controlled. (3) The filling precision of each or whole filling nozzles can be
adjusted. (4) The surface of machine is made of high quality stainless steel

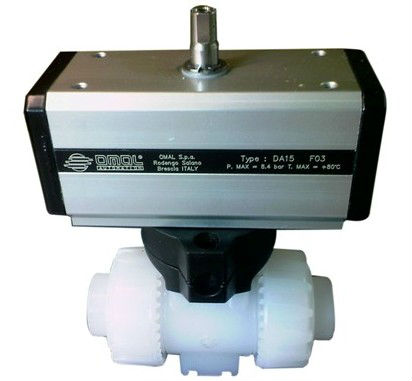

. (5) Anti-corrosive special valves of OMAL Italy, unique design of
vacuum to avoid leaking. (6) Filling nozzles are made of titanium alloy stainless steel. (7) Safety design for no bottle, no filling. (8) Widely applicable in low viscous, strong corrosive, high foamy
liquid. |
Advantages : |
1. Surface paint treatment 2. The piston cylinders installed in the above 3. Easy to adjust the filling nozzles 4. Anti-corrosive special valves of OMAL Italy
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will
be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and
debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD50.00/day/person.
(4) We can also supply training process for your engineers who come
to china, so you can fit and debug machines by yourself.
About Us:
-- Focusing on Development, Packaging Industry Leader
-- Keeping on Recruiting Talents and Innovation
-- Advanced equipment, Guaranteed quality
FAQs
1. What types of packaging machines does Huituo offer?
We offer complete packaging systems that include one or more of the
following machines: bottle unscrambler, filling machine, capping
machine, cap unscrambler, bottle rinsers and washers, sleeve
labelers, inkjet printers for labelers, conveyors, turntables, and
monoblock.
2. What are the basic types of capping machines?
We have three series of capping machine:
1. SPU
Permanent magnet clutch
Suitable for the bottles with similar heights
Can be customized based on requirements
Max. Speed: 100bpm
2. SPI:
Permanent magnet clutch
Suitable for more bottles and caps
Can be customized based on requirements
Max. Speed: 200bpm
3. SPM:
Servo control
Suitable for more bottles and caps
Higher torque accuracy
Easier operation
Can be customized based on requirements
Max. Speed: 200bpm
3. What's the difference between semi-automatic and automatic
capping machine?
Semi-automatic capping machines require one or more operators to
place caps onto the cap-sending channels. The automatic capping
machine will be equipped with cap elevator and unscrambler,
achieving the highest production rates. It is suitable for round
cap and pump.
4. What are the basic types of filling machines?
Usually we have three types of filling machines
1. self-flow filling machine
2. Piston filling machine (Option 1: one servo motor to control all
filling nozzles; Option 2: each filling head is controlled by each
motor)
3. Flowmeter filling machine (Option 1: electromagnetic flowmeter;
Option 2: mass flow meter)
4. Pneumatic filling machine
Now, we have the forth filling machine for the hand sanitizer with
70%-80% alcohol, as it is much safer than the above three.
5. Should I choose linear filling machine or rotary filling
machine?
Usually, if the speed is over 6,000bph(based on 500ml), we will
suggest customer choose the rotary filling machine. The linear one
is more suitable for lower speed.
6. Do installation and training included in the machinery cost?
Training is included with most Huituo machinery but installation
and commissioning at site requires an additional fee.
7. What warranties does Huituo offer?
One year on non-wear parts and labor. Huituo warranties can also be
extended, ask a salesperson for information.
8. Can I rent equipment from Huituo?
Yes. Ask a salesperson for more information.
9. How long will the machine be delivered?
It depends on the degree of customization. The higher degree, the
longer delivery time.
