    Huituo rotary liquid bottle filling and chuck capping machine monoblock designed to simplify your bottling line

    Product Overview
    Huituo rotary liquid bottle filling and chuck capping machine monoblock designed to simplify your bottling line

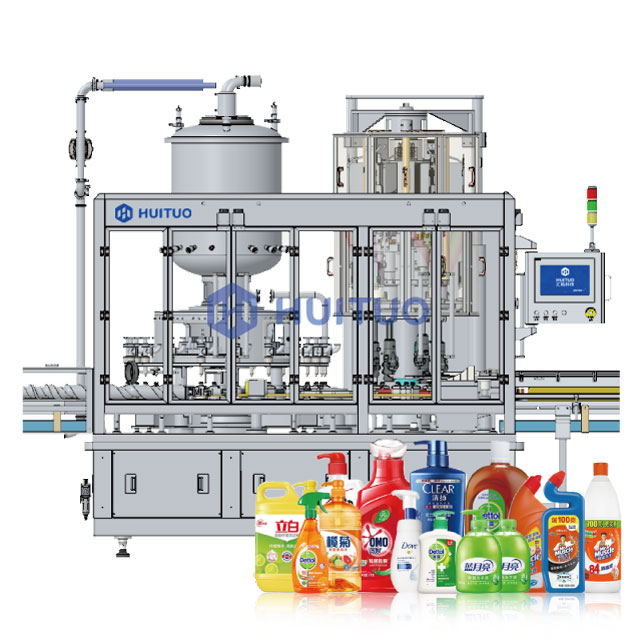

    HUITUO filling and capping monobloc machine
    1.The 2-in-1 filling and capping monobloc machine uses screw rod to separate the bottle before filling position. It is composed of control system, conveying device, sensor detection, feeding device, storage tank, liquid level control device, filling station, capping station with unqualified products rejection etc.
    2. The electrical control part is composed of PLC and frequency converter, which features high integration, strong control
    ability and reliable operation. The touch screen makesthe operation of the machine more reliable and convenient, and the HMI is more friendly.
    FEATURES AT A GLANCE
    Huituo rotary liquid bottle filling and chuck capping machine monoblock designed to simplify your bottling line
    Huituo rotary liquid bottle filling and chuck capping machine monoblock designed to simplify your bottling line

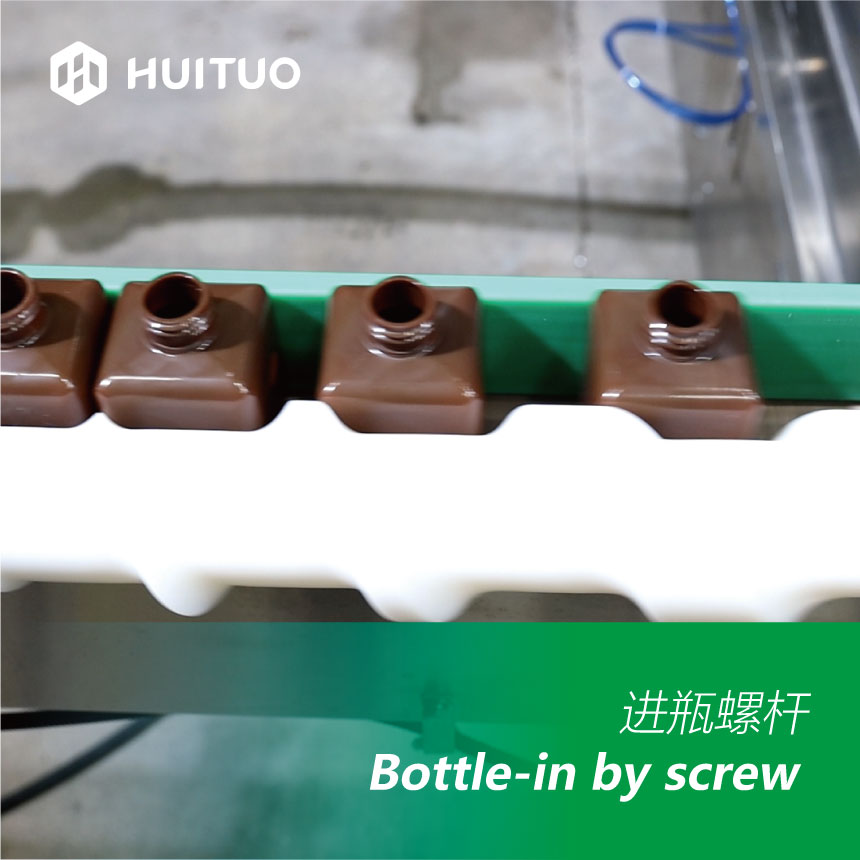

    Bottle-feeding by screw
    The bottle-in screw is processed by contour design; Precise and fast bottle feeding; Gentle movements, no damage to bottle.
    Huituo rotary liquid bottle filling and chuck capping machine monoblock designed to simplify your bottling line

    Customized filling head
    Specially designed filling nozzle with high precision and long service life. It is customized based on the liquid features and customer requirements.
    Huituo rotary liquid bottle filling and chuck capping machine monoblock designed to simplify your bottling line

    Cap-feeding channel
    The deisgn of cap-sending channel is based on the cap features to avoid cap stuck and cap damage. We have different designs available.
    Huituo rotary liquid bottle filling and chuck capping machine monoblock designed to simplify your bottling line

    Customized capping head
    The capping head adopts three-piece design, which can ensure it's tightened well and effectively prevent the cap from being damaged during the capping process.
    PRODUCT SPECIFICATIONS
    No
    Item
    Data
    1
    Dimension
    Designed based on factory layout
    2
    Capacity
    120-300BPM
    3
    Voltage
    220V-380V, 50-60Hz, three-phase five-wire power supply
    4
    Air source required
    0.4-0.6Mpa clean and stable air source
    5
    Running noise (decibel)
    ≦80 decibels
    6
    Machine weight
    About 5,000KG
    7
    Filling type
    Piston/flowmeter/graviety
    8
    Capping type
    Permanent magnet clutch/Servo
    PRODUCT CONFIGURATION
    Huituo rotary liquid bottle filling and chuck capping machine monoblock designed to simplify your bottling line

    IEC standard electric cabinet
    Electrical design- IEC 60204-1 standard Electrical schematics drawn in EPLAN Pro Panel (3D drawing)
    Huituo rotary liquid bottle filling and chuck capping machine monoblock designed to simplify your bottling line

    Siemens control system
    There are different control systems available, Siemens, AB and domestic invoance system.
    Huituo rotary liquid bottle filling and chuck capping machine monoblock designed to simplify your bottling line
    Remote commissioning
    Customer Photos
    Huituo rotary liquid bottle filling and chuck capping machine monoblock designed to simplify your bottling line
    Why Choose Us
    1. Shorter delivery time
    Up to 80% improvement in delivery time
    2. More flexible customization
    R&D mechanical and programme team with rich experience guarantees the most suitable packaging solution.
    3. More timely aftersales-service
    7*24h on-line support, Arrive at site within 24h(Jiangsu, Zhejiang and Shanghai areas), within 48h for others to reduce downtime loss.
    4. More cost-effective
    Cost reduced by over 50%, without additional sea freght and taxes etc.
